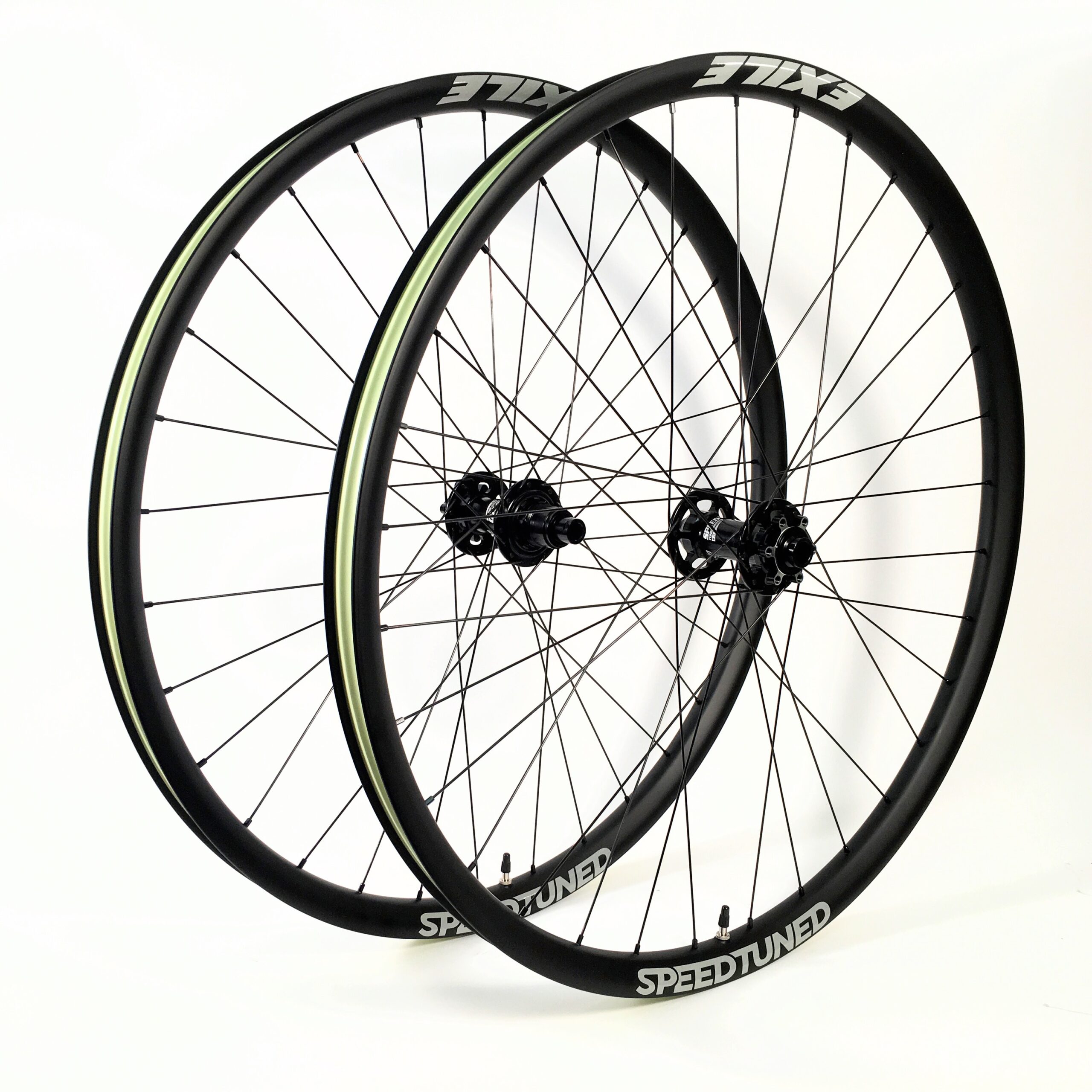

The Exile Carbon wheelset  has a 29mm inner width rim channel with a hookless bead and  tubless compliant profile. Hookless beads give the advantage of having more carbon material where you need it most to protect the rim from impact damage and a 29mm inner width for increased tire contact and unwavering stiffness, however it is still light enough climb to the top. The Super 6 hubs feature a 36 point engagement system to assist on those rocky and rooted technical climbs. They also have a full range of end cap options for most axle configurations, and we also offer boost spacing and lefty fork options when you select a variation of the hub.

Wheel Size *

Hub Model *

Front Axle Spacing *

Rear Axle Spacing *

Freehub *

Rim Decal Color *

Category: Tags: , , ,


Exile Carbon
29″ Weight Front: 810g / Rear: 930g Set: 1740g
27.5″ (650b) Weight Front: 770g / Rear: 910g  Set: 1680g
Hub Front: Speed Tuned Super 6 Rear: Speed Tuned Super 6
Spoke Count Front: 32H Rear: 32H
Spoke Pattern Front: 3 Cross Rear: 3 Cross
Rim Carbon Hookless bead Tubeless Ready
Inner Width 29mm
Outer Width 35mm
Rim Depth 24mm
Spokes Sapim D-Light TCS 2.0/1.65/2.0 Butted Stainless Spokes Black
Nipples Sapim Alloy Double Square Black
Bearings Sealed Cartridge Enduro Bearings
Points of Engagement 36 (10 degrees) 4 pawls
Freehub Shimano/SRAM 9/10/11 speed or SRAM XD 11 speed
End Caps: Quick Release Front 9mm x 100mm / Quick Release Rear 10mm x 135mm Thru-Axle Front 15mm x 100mm / Thru-Axle Rear 12mm x 142mm **Boost Front 15mm x 110mm / **Boost Rear 12mm x 148mm **Lefty Front Hub
** Different hub required

1 review for EXILE CARBON

  1. SSeybold

    These wheels are better than I could have ever imagined. They are INCREDIBLY light and strong as nails. I absolutely love them and can’t recommend them enough. I put them on my wife’s MTB too… so ya, we’re fans.
    -Steve S.
