The Evo Race Carbon wheelset boasts a 22mm inner width rim channel with a stout hookless bead and tubless compliant profile. Hookless beads give the advantage of having more carbon material where you need it most to protect the rim from impact damage and a 22mm inner width borders on an agressive trail rim width, however it is still light enough for XC racing use. The Evo Race Carbon will give you confidence when going into questionable trail sections with a reassuring stiffness you can always trust will go where you point the bars. The Super 6 hubs feature a 36 point engagement system to assist on those rocky and rooted technical climbs. They also have a full range of end cap options for most axle configurations, and we also offer boost spacing and lefty fork options when you select a variation of the hub.

Wheel Size *

Hub Model *

Front Axle Spacing *

Rear Axle Spacing *

Freehub *

Rim Decal Color *

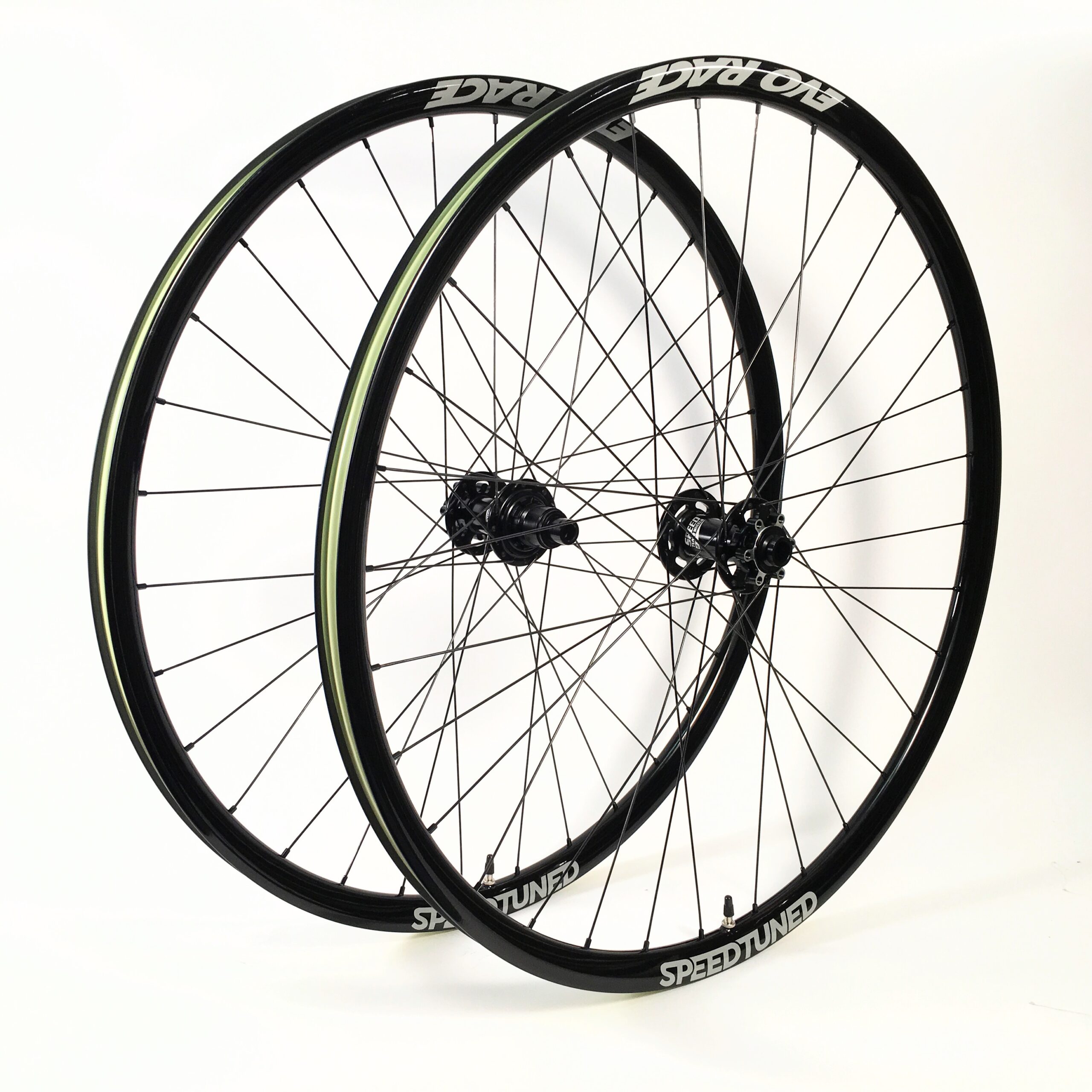

Evo Race Carbon
29″ Weight Front: 735g / Rear: 865g Set: 1600g
27.5″ (650b) Weight Front: 695g / Rear: 825g  Set: 1520g
Hub Front: Speed Tuned Super 6 Rear: Speed Tuned Super 6
Spoke Count Front: 32H Rear: 32H
Spoke Pattern Front: 3 Cross Rear: 3 Cross
Rim Carbon Hookless Bead Tubeless Ready
Inner Width 22mm
Outer Width 28mm
Rim Depth 24mm
Spokes Sapim D-Light TCS 2.0/1.65/2.0 Butted Stainless Spokes Black
Nipples Sapim Alloy Double Square Black
Bearings Sealed Cartridge Enduro Bearings
Points of Engagement 36 (10 degrees) 4 pawls
Freehub Shimano/SRAM 9/10/11 speed or SRAM XD 11 speed
End Caps: Quick Release Front 9mm x 100mm / Quick Release Rear 10mm x 135mm Thru-Axle Front 15mm x 100mm / Thru-Axle Rear 12mm x 142mm **Boost Front 15mm x 110mm / **Boost Rear 12mm x 148mm **Lefty Front Hub
** Different hub required
